VIEWALYZER · VIEWS

Event Counters

The DWT profiling counters as tiles: CPI (extra cycles per instruction), exception overhead, sleep, load/store stalls, folded instructions and the cycle event. They are the core's own accounting of where its cycles went, with no sampling involved.

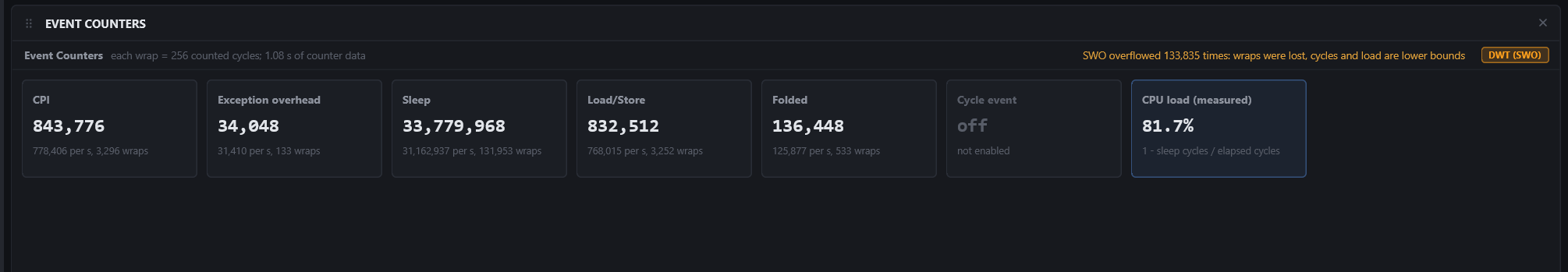

Event Counters after a capture with five counters on: one tile per counter with its cycles, rate and wraps, the measured CPU load, and the amber overflow note.
EVENT COUNTERS AFTER A CAPTURE WITH FIVE COUNTERS ON: ONE TILE PER COUNTER WITH ITS CYCLES, RATE AND WRAPS, THE MEASURED CPU LOAD, AND THE AMBER OVERFLOW NOTE

Needs: the SWO trace source, Profiling Source On-chip trace, and one or more Counter: switches on. See Hardware trace. The cycle event is refused while PC sampling is on (they share the same hardware timer).

The tiles

TILE MEANING
CPIExtra cycles spent per instruction beyond the first (pipeline stalls, waits on flash)
Exception overheadCycles spent entering and leaving exceptions
SleepCycles the core spent asleep (WFI / WFE)
Load/StoreExtra cycles in loads and stores
FoldedInstructions that took no cycle at all
Cycle eventA tick every POSTCNT interval; off unless enabled with PC sampling off
CPU load (measured)1 - sleep cycles / elapsed cycles, with the Sleep counter on. A measurement, not the Profiler's sample-share estimate

Each tile shows the counted cycles, the rate per second and the number of wraps: every counter is 8 bits wide and sends a packet each time it passes 256, so 3,296 wraps is 843,776 cycles. The header states how many seconds of counter data the figures cover.

When the pin overflows

Several counters at once produce a packet every 256 cycles each, which a 2 MHz pin cannot carry for long. When the ITM dropped packets, the header says so in amber (SWO overflowed 133,835 times: wraps were lost, cycles and load are lower bounds) and every figure on the panel is a floor, not a measurement. Turn on only the counters you need (the Sleep counter alone gives the CPU load), or raise the SWO frequency.

Tips

  • The same tiles come out of the command line, with a reliable flag: viewalyzer-cli query dwt-counters --recording capture.vadb.
  • The measured CPU load and the CPU view's busy figure answer different questions: the CPU view counts task slices from the recorder, this tile counts cycles the core did not sleep. On a firmware that idles in WFI they agree; on one that busy-waits, only this one sees it.
