FreeRTOS
Task scheduling and notifications, queues, mutexes, semaphores, event groups, kernel heap allocation, and software timer lifecycle.
ViewAlyzer
Runtime trace analysis for embedded systems
Built with Rust and GPU-accelerated GPUI, ViewAlyzer is a native desktop app for streaming live signals and investigating blocked tasks, queue contention, and late callbacks.
- Arm®
- RISC-V®
- FreeRTOS™
- Arm® RTX5
- ST-LINK
- J-Link
- Windows
- macOS
Linux
VS Code- CLI

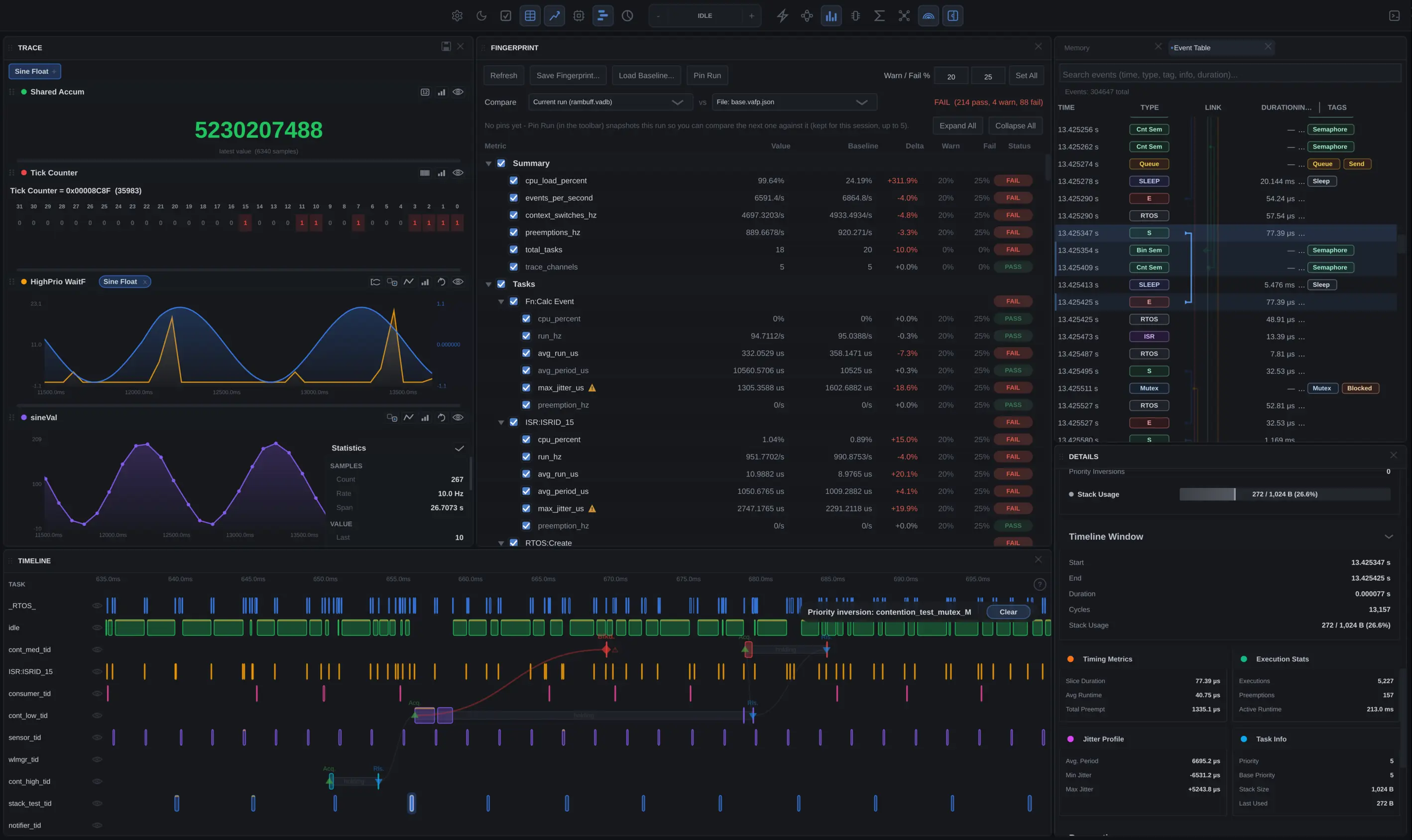

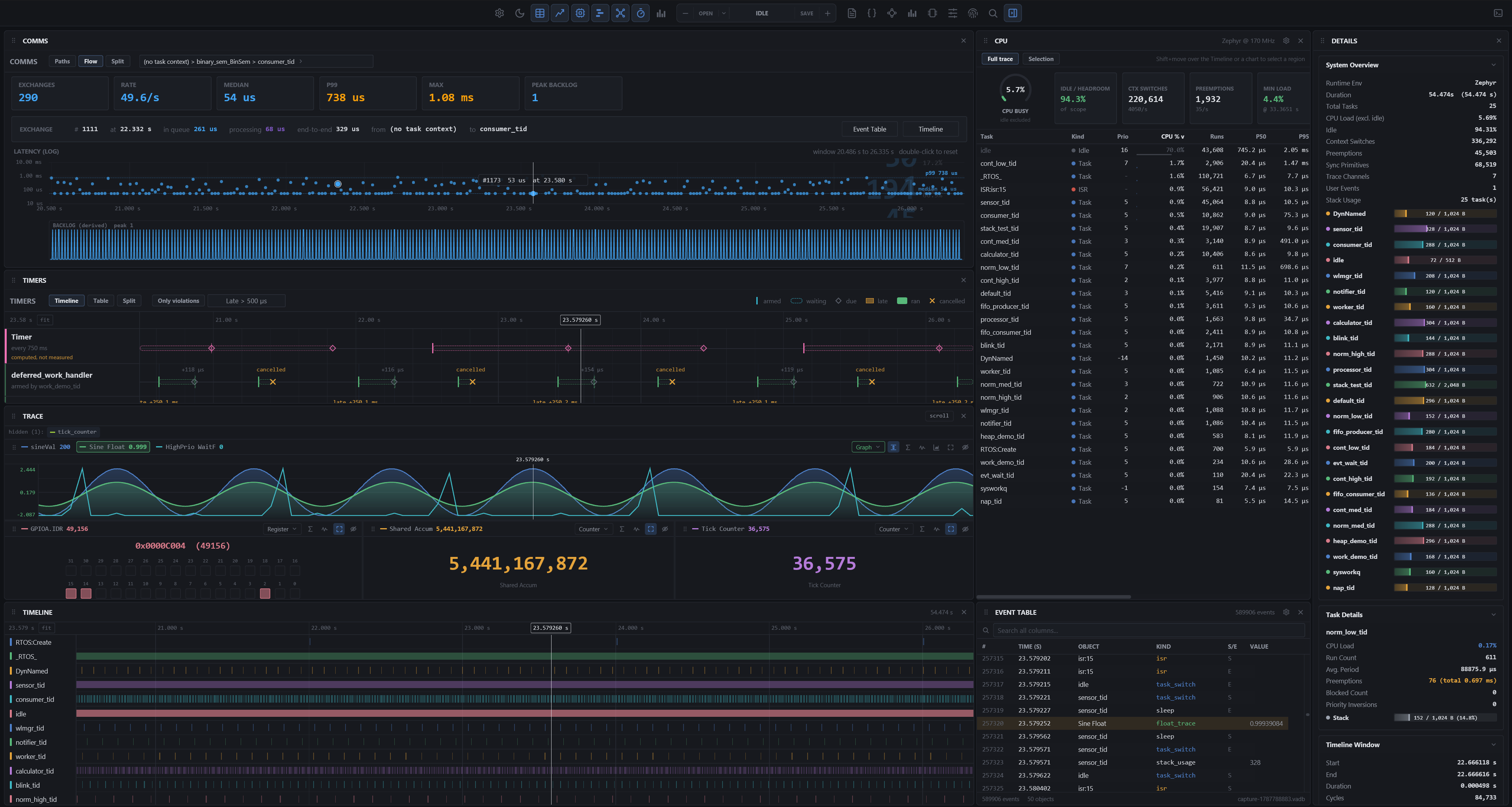

Communication, timers, signals, CPU activity, and task timelines in one workspace.Click to play the full video with sound ↗
Your kernel.
One connected view.
ViewAlyzer’s RTOS adapters record task and thread activity through kernel hooks. Follow scheduling, synchronization, queues, memory allocation, and timer activity alongside your application events.
Zephyr RTOS
Thread scheduling, message queues and FIFO/LIFO, mutexes, semaphores, event objects, kernel heap and slabs, and timer lifecycle.
Eclipse ThreadX®
Thread scheduling, queues, mutexes, semaphores, event flags, byte and block pools, and application timer lifecycle.
Arm RTX5
Thread scheduling, message queues, mutexes, semaphores, event flags, memory allocation and pools, and software timer lifecycle.
A runtime map of your firmware
Every task, queue, mutex and notification in the recording becomes one map of recorded traffic. Replay the capture and watch messages move, failures land and queues fill.
Turn on traffic heat to color each path by volume, gather the busiest objects together, and narrow the heat to any interval on the timeline.
Explore the runtime map ↗
From a failure on the map to the exact event
Replay the recording from the top bar and every view follows the cursor. Switch on Issues only and failures, timeouts and contention light up where they happened.

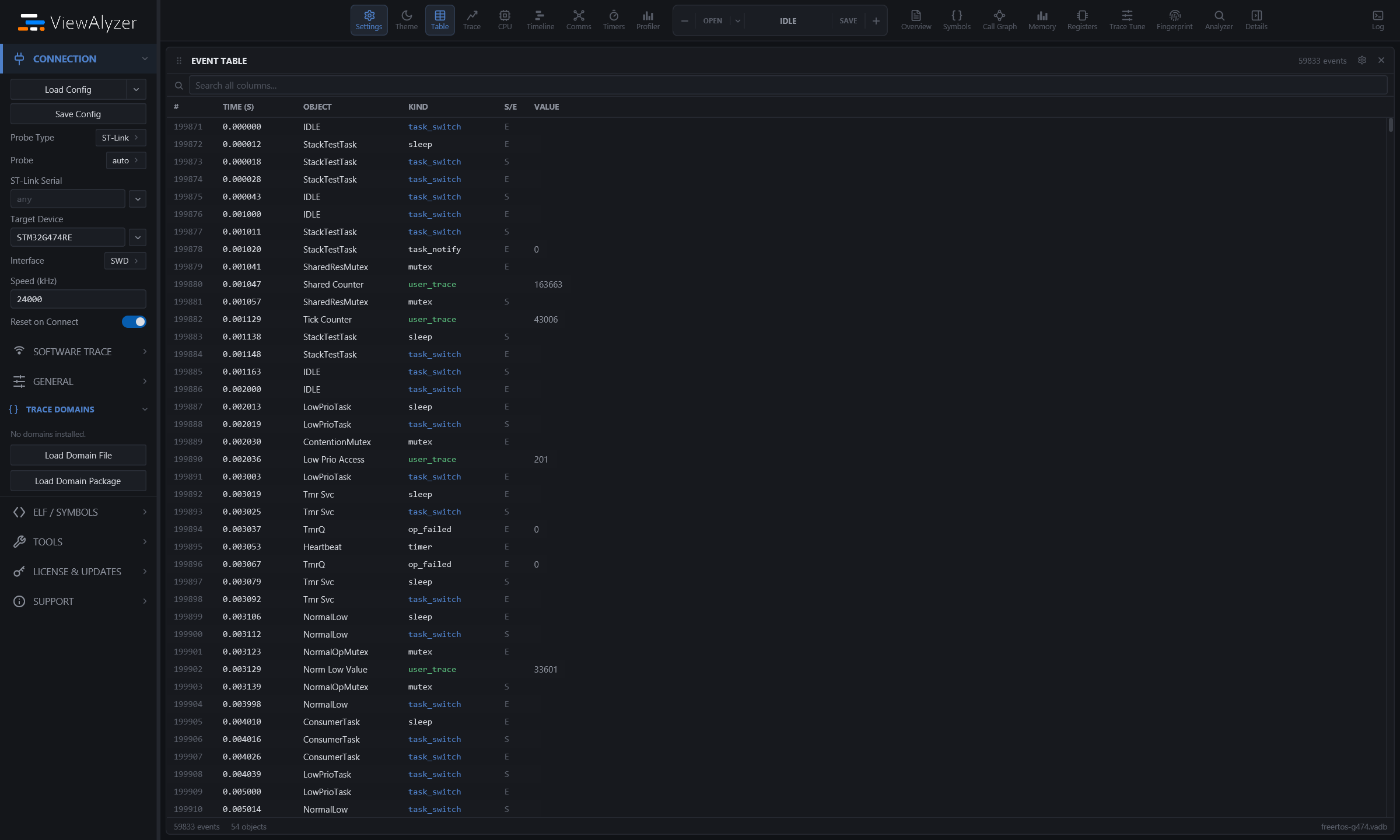

Open one in the inspector, then jump straight to it: the Timeline and Event Table land on the event. Here, DefaultTask retries every 20 ms against a queue that is already full.

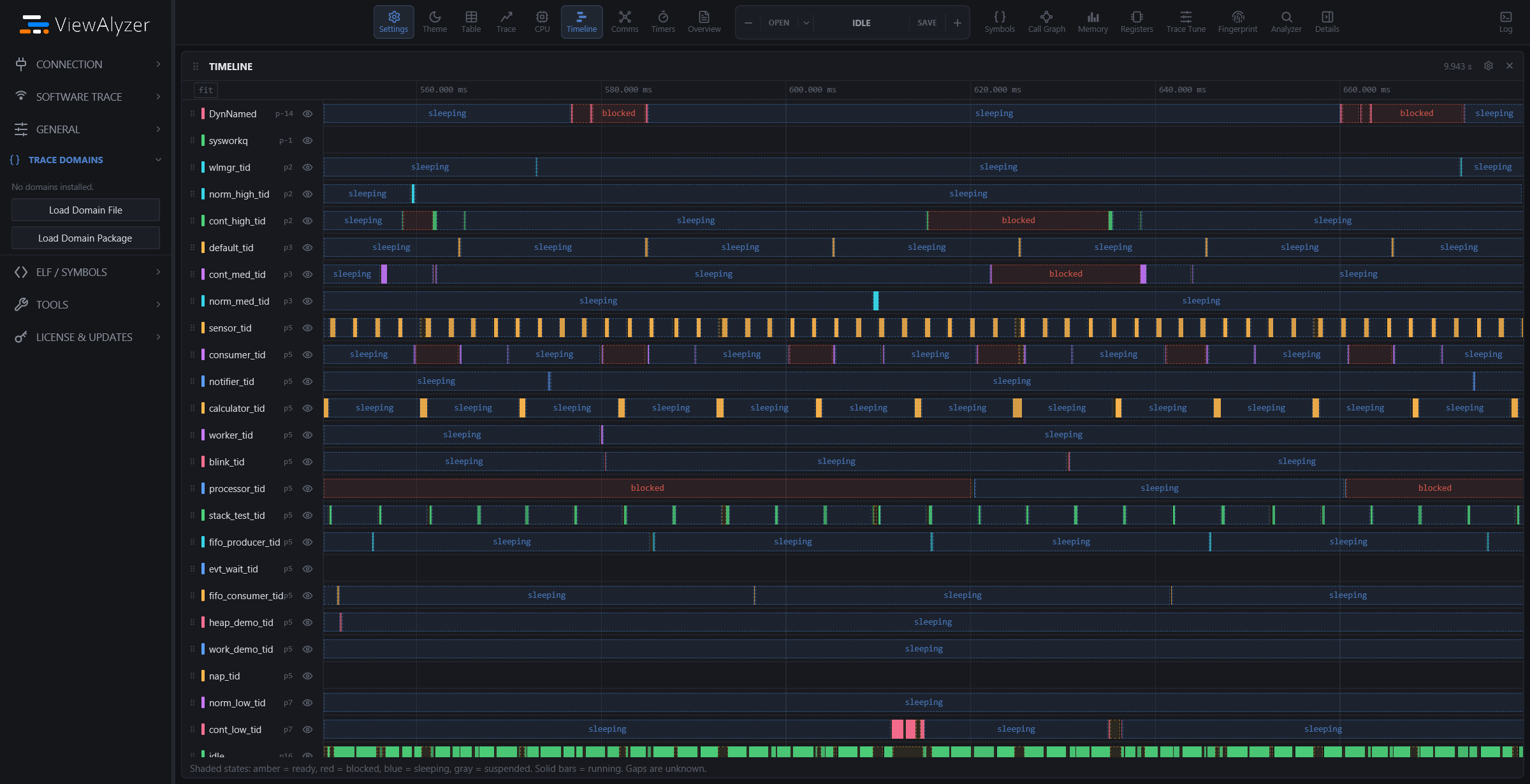

Replay and inspect ↗Task execution and states
A task stops making progress. Is it asleep, waiting for a resource, or ready but waiting for CPU time? View execution and recorded task states together to investigate the gap.
Missing state events remain unknown, so you can distinguish recorded evidence from an assumption.
Explore task states ↗

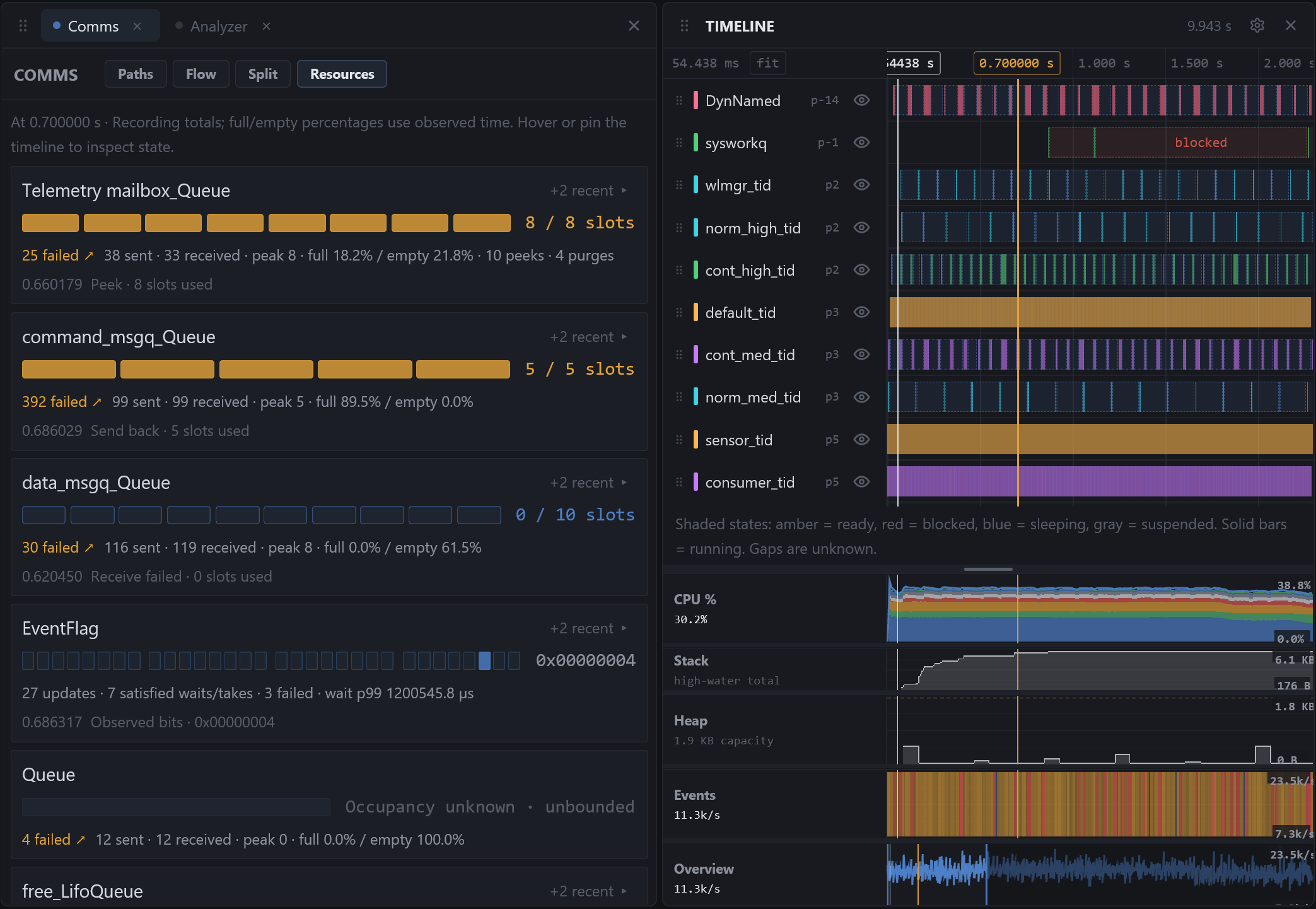

Queue and resource analysis
Scrub the recording to see occupancy at the cursor. Check peak usage, failed operations, and time spent full, then follow the consumer on the timeline.
RTOS adapter hooks supply resource observations. Enable the categories your investigation needs.
Inspect resources ↗

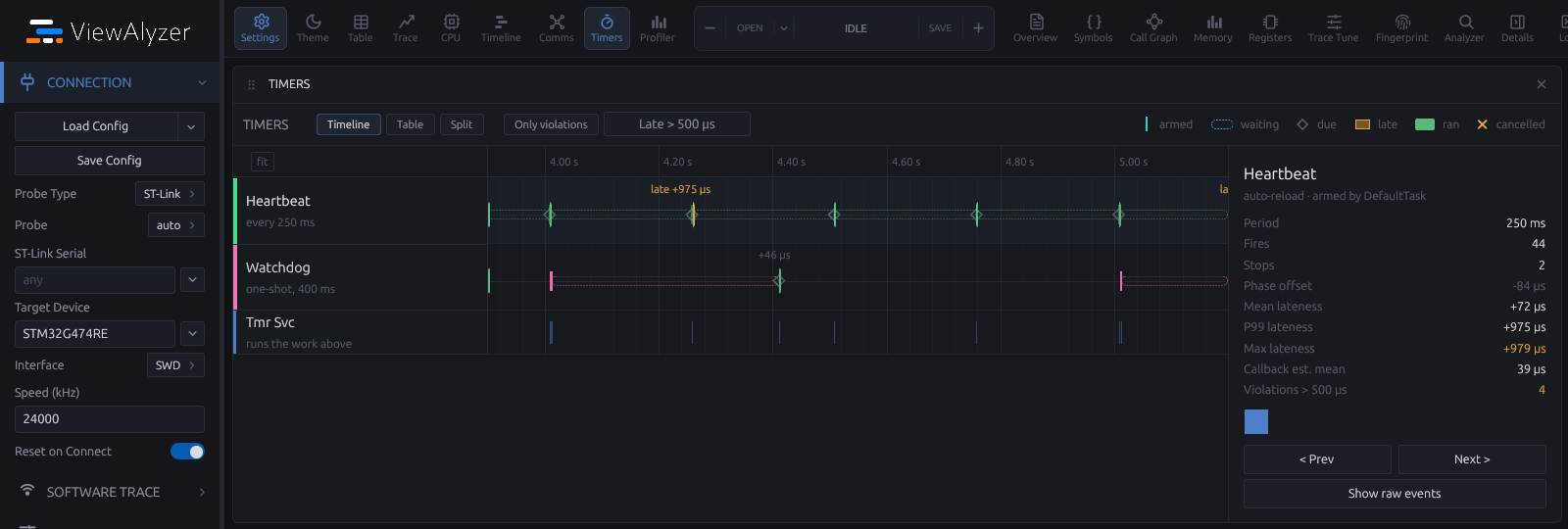

Timer and callback analysis
Line up timer arms, deadlines, callbacks, and cancellations. Select a timer to inspect its cycles and separate late execution from an intentional cancellation.
Investigate jitter, watchdog activity, and work building up in the timer service task.
Explore timers ↗

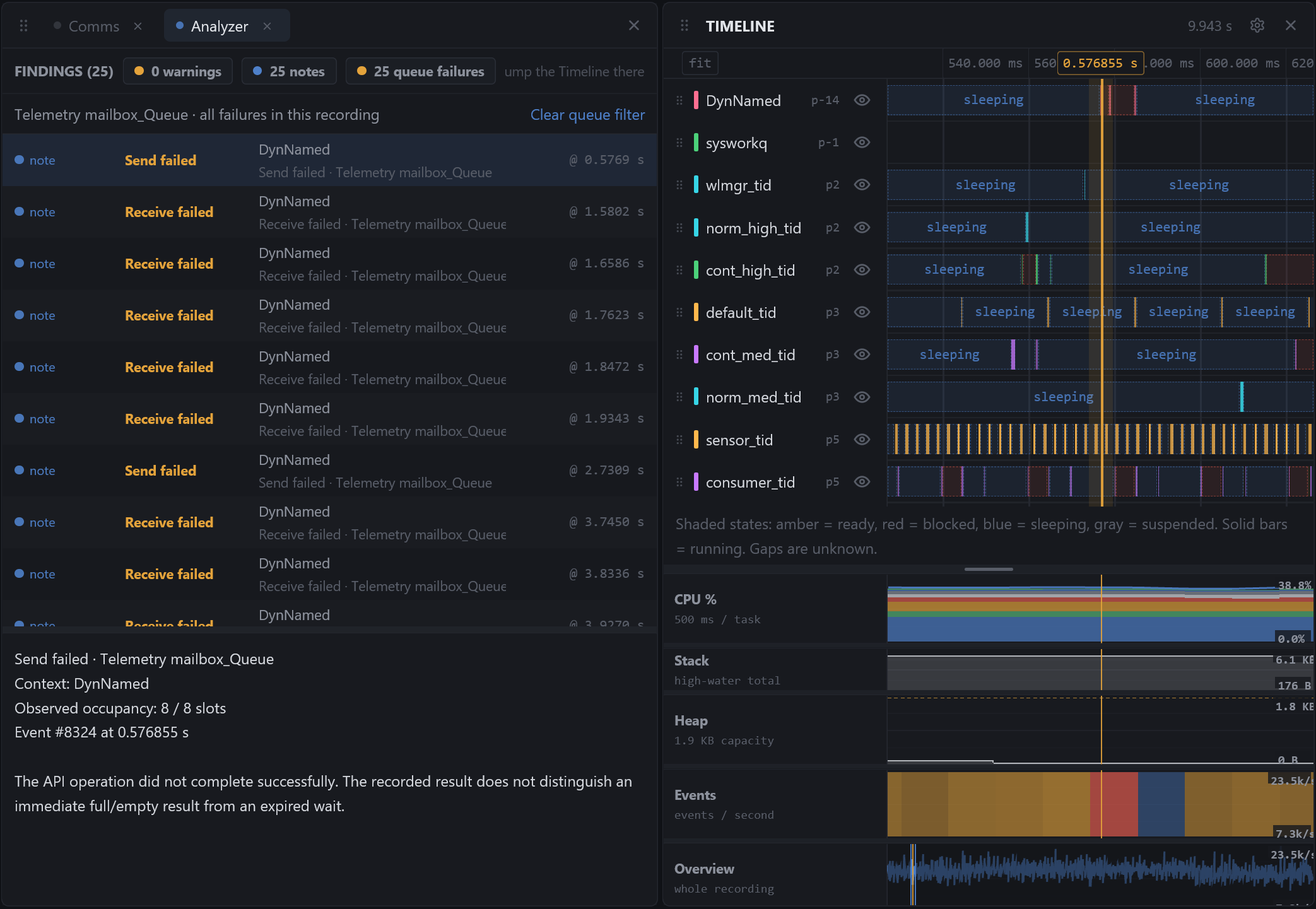

Failed operations in context
Click a queue’s failure count to see the individual operations. Select an instance to jump to the exact timeline event, with its task or ISR and observed occupancy.
An unsuccessful nonblocking poll can be expected. Use the surrounding activity to understand whether a failed operation matters.
Follow a queue failure ↗
Synchronized analysis views
Open the views you need. Each panel follows the same capture and shared cursor.

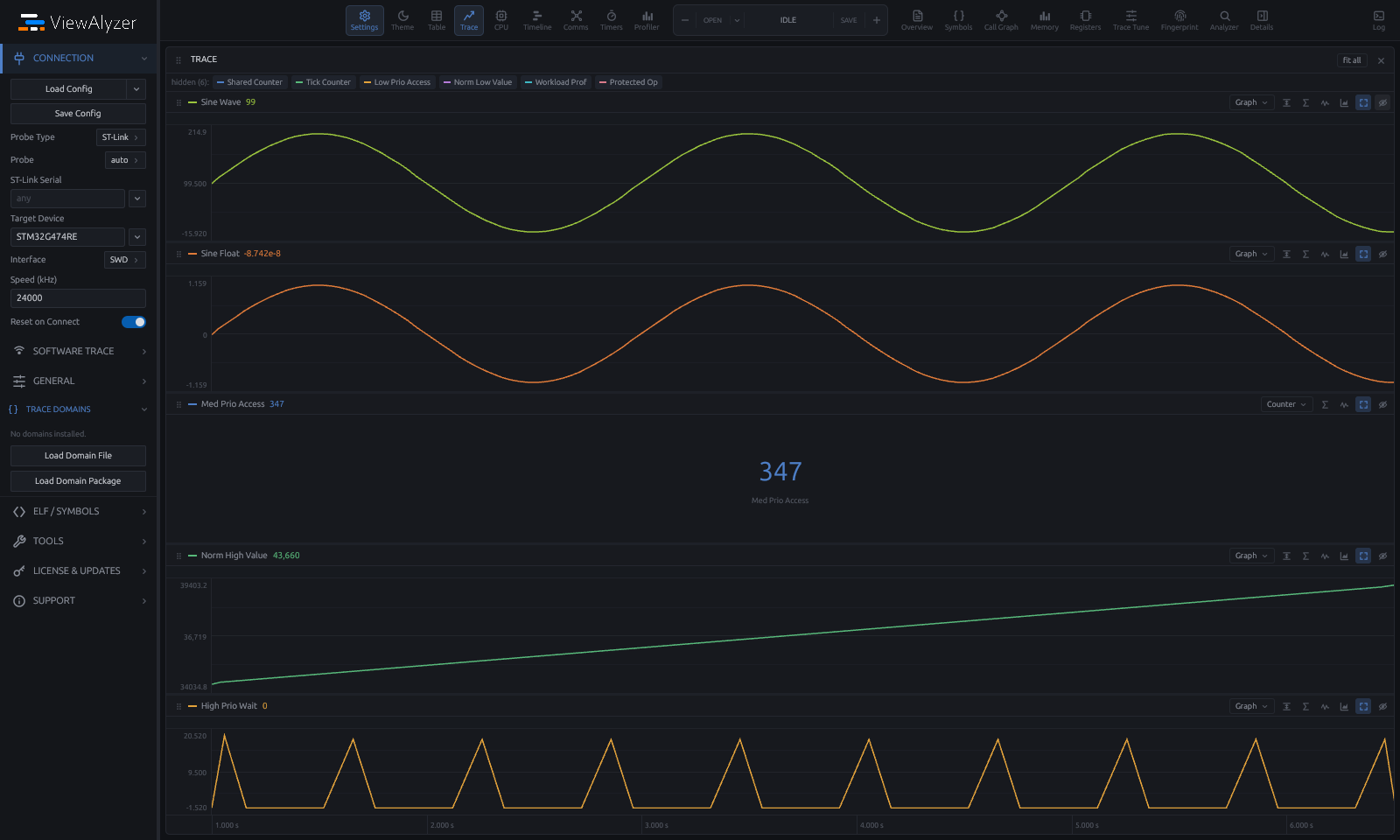

Signals in context
Plot application values beside task activity. Connect a sensor spike or changing control output to the work running at that moment.
Signal charts ↗Work with the capture you have

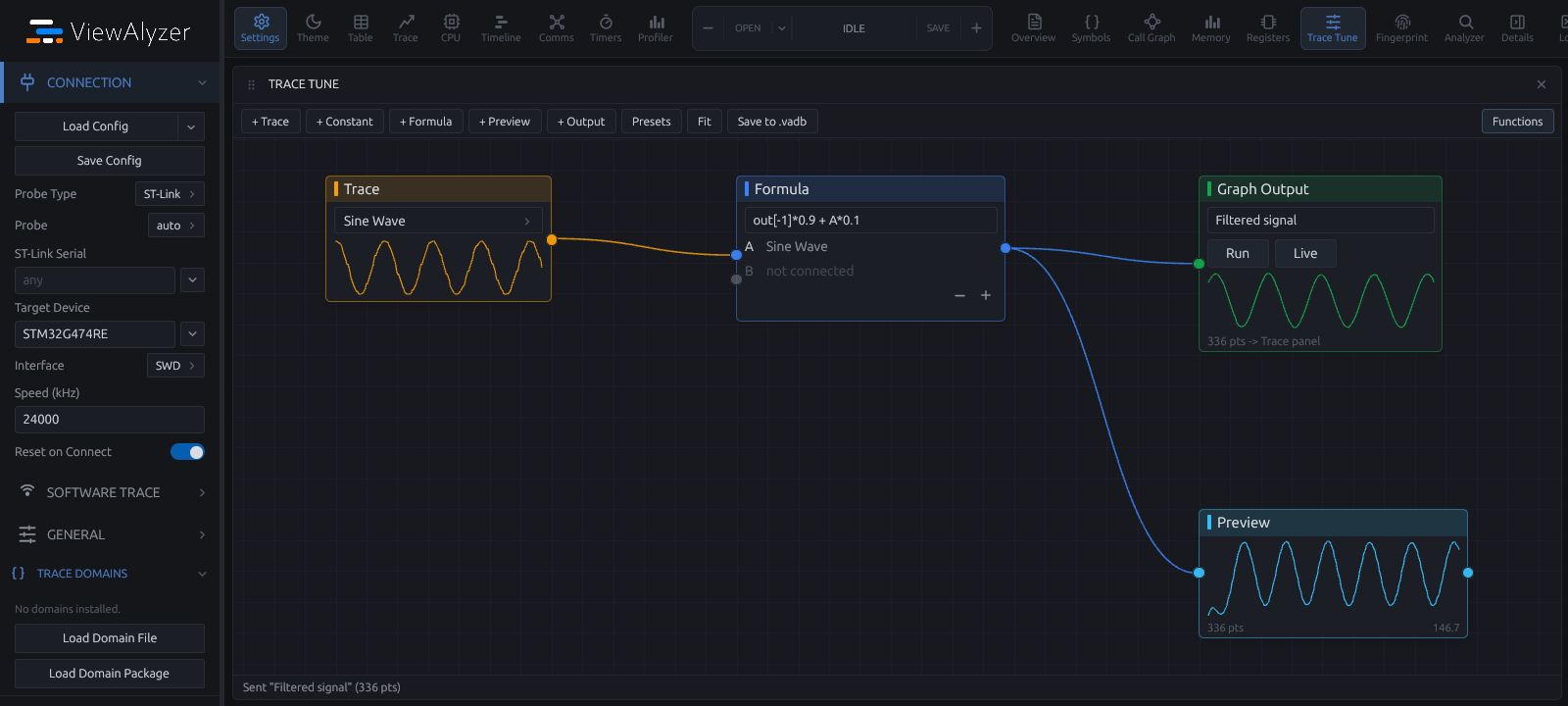

Build derived signals with Trace Tune’s visual node graph. Filter inputs, convert units, and combine channels without another firmware run.
Trace Tune ↗Follow contention and latency

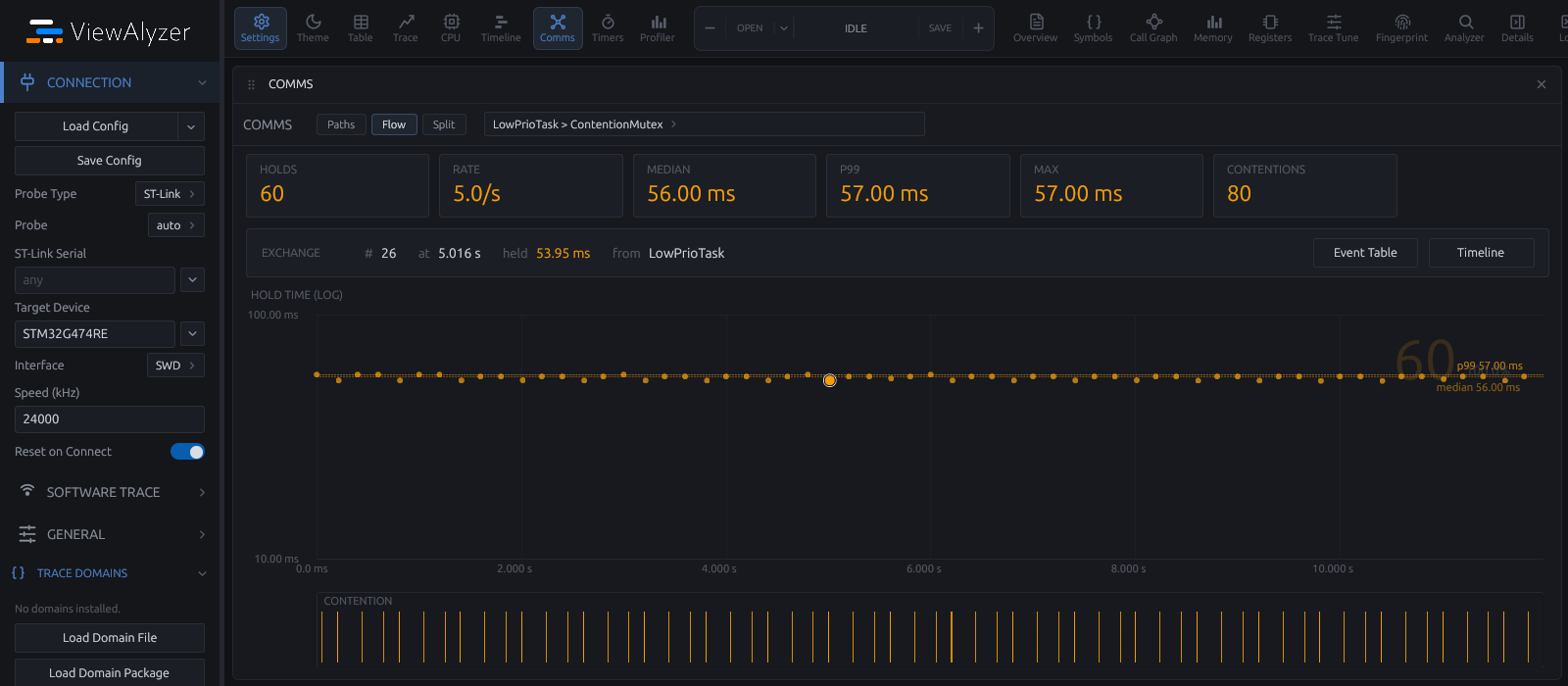

Inspect queue and semaphore exchanges or mutex hold times. Scatter plots surface outliers that averages can hide.
Communication analysis ↗Measure the interval
Place time markers across the timeline and signal charts. Read the interval between events as you zoom, pan, and scrub.
Time markers ↗Bring recordings into regression checks

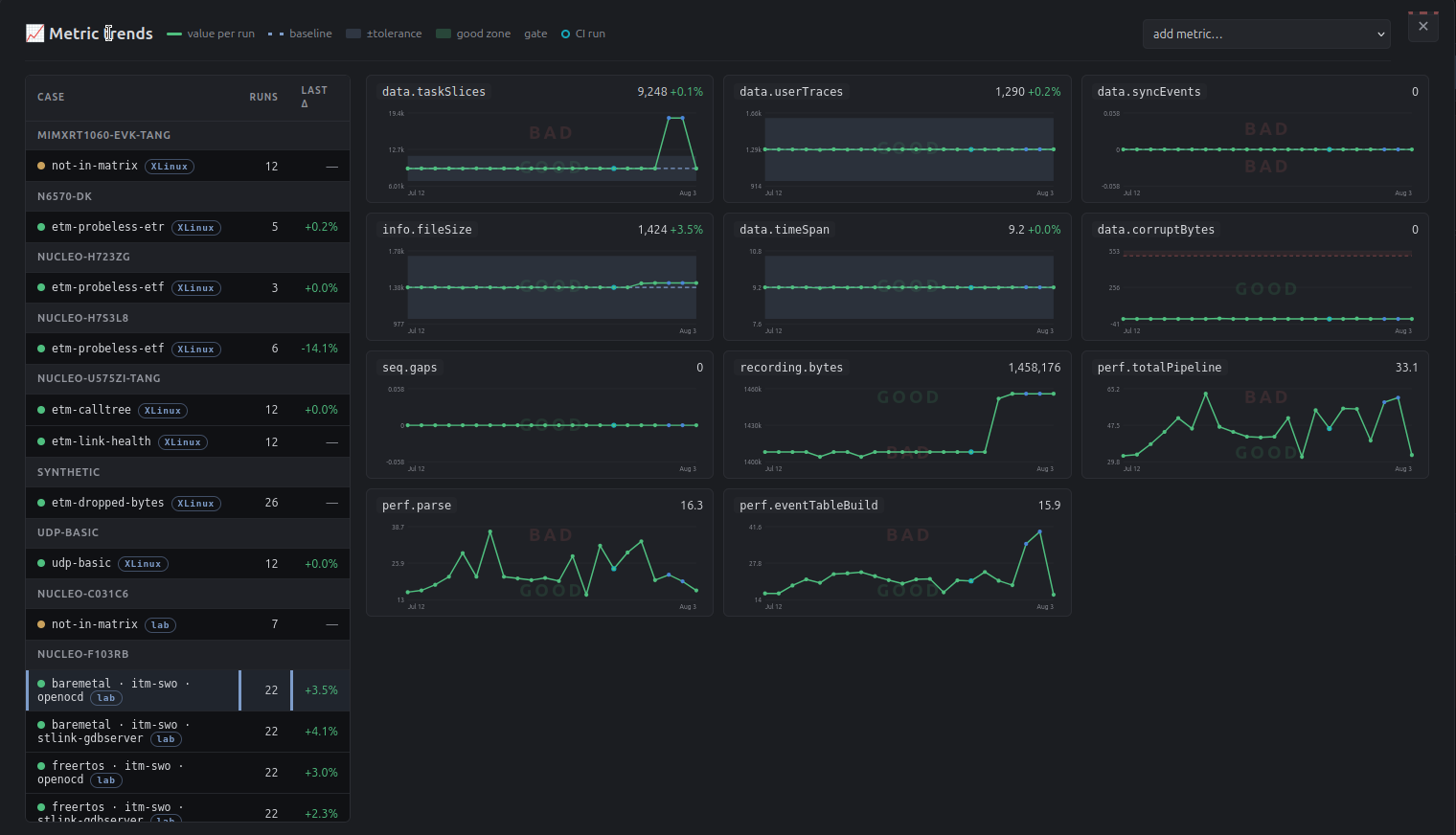

Use the CLI and queryable recordings to compare runtime behavior between builds and inspect the evidence behind a change.
Automation documentation ↗Read events in your system’s language
Trace Domains add protocol and subsystem views to the workspace, with schemas and decoders for domain-specific events.

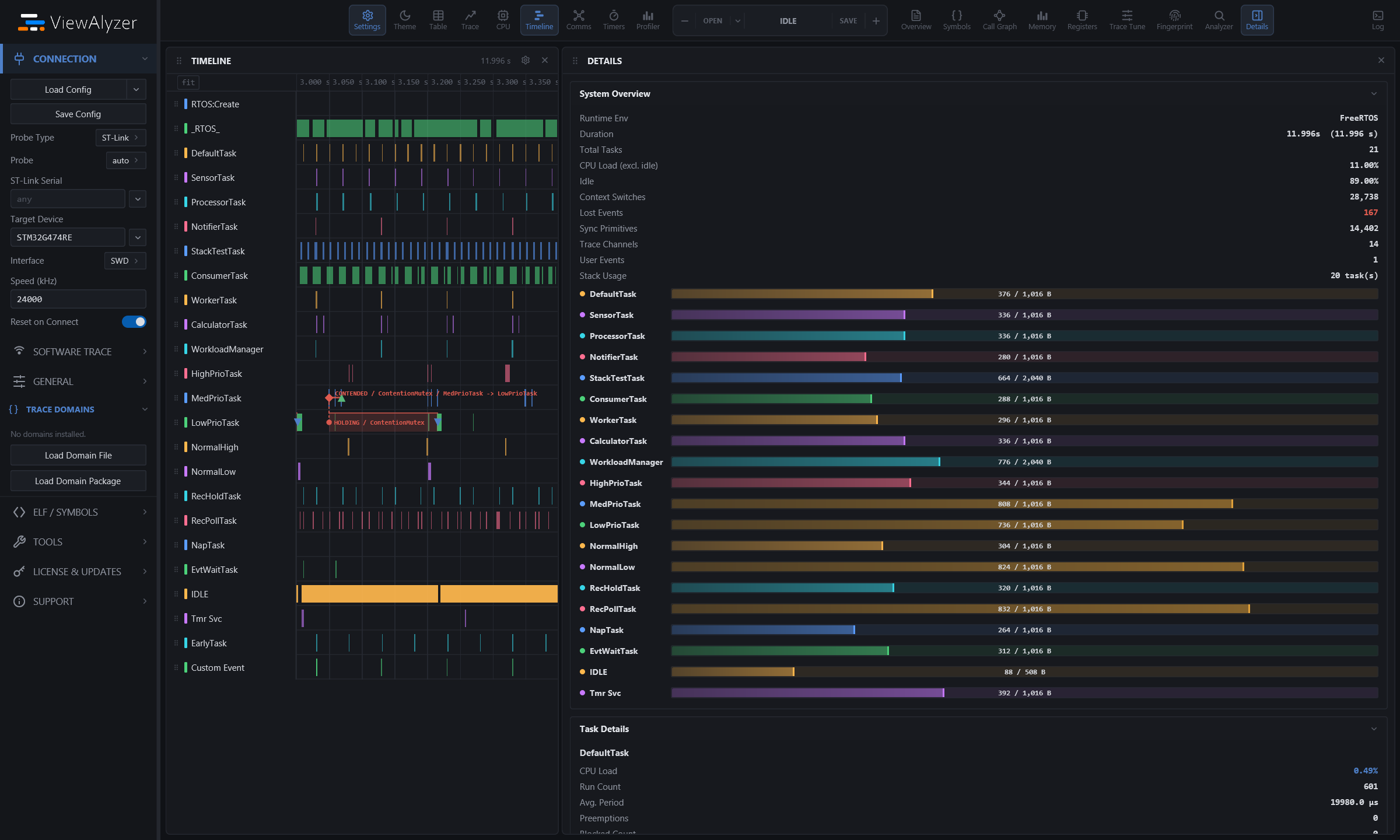

Trace Domain catalog ↗ViewAlyzer workspace
Compare the tools.
Inspect the evidence.
ViewAlyzer vs. Percepio & SEGGER
Compare capture paths, analysis views, automation, and evaluation limits in the published feature matrix.
Compare featuresWhat does recording cost?
See CPU use, timing, and RAM measured in the same telemetry application with recording off, ViewAlyzer, and Percepio.
See firmware impactRelease notes ·
What's new in ViewAlyzer 1.4.0
Inspect live recordings without stopping capture, find issues faster in Analyzer, and get more precise CPU, stack, heap, and timer measurements.
Follow the changes
Read the release highlights and fixes, with a history of published versions. This release includes every change since 1.3.1, the previous public release.
Read release notesUpgrading an existing project?

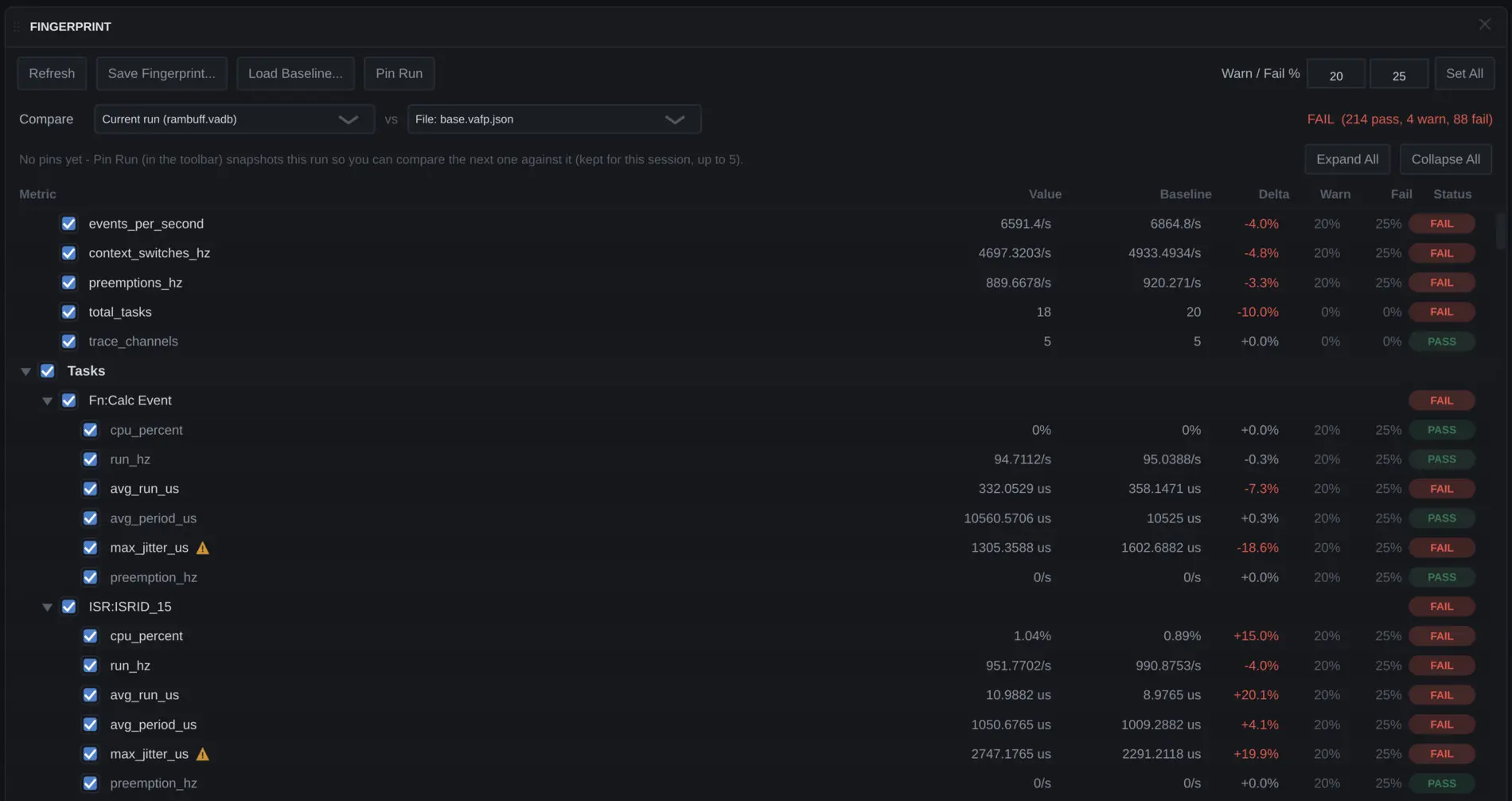

The new viewer still reads older recorder streams. Upgrading the recorder requires the new viewer; fingerprint baselines and custom automation need migration. ESP32 debug-probe capture is temporarily unsupported.
Check compatibilityYour first recording starts here.
No account or license needed to evaluate. Get the app and the Apache-2.0 recorder library, then integrate the recorder with your RTOS or bare-metal firmware.
ViewAlyzer 1.4.0 · SHA256 checksums
Updating an existing installation? Read the release notes and upgrade checklist.
Prefer your editor? Install ViewAlyzer for VS Code ↗
Free evaluation: 5-second captures, 5-second cooldown, 10 timeline lanes, and variable watching at 100 Hz across 4 symbols. Compare Free and Pro →
Keep recording.
Get the whole picture.
One Pro license for ViewAlyzer, BKPT Debug, and BKPT Toolkit.
